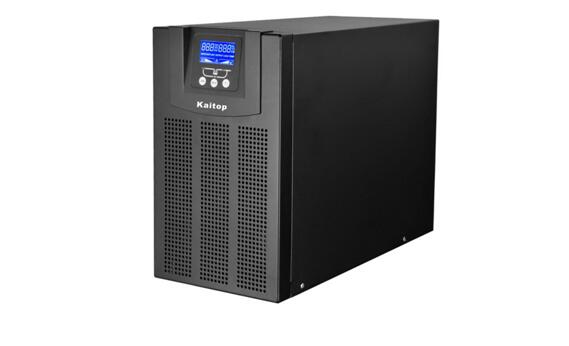

OT series
Products Characteristic:
1)Advanced DSP digital control technique
Advanced DSP digital control technique, make the performance of the higher UPS, product performance more stable, more reliable quality.
2)Green environmental protection
This product is a green environmental protection products, in line with the national electronic information product pollution control management measures, the product under normal use, will not harm the environment and personal
3)Active input power factor correction (PFC)
Adopting digital control of active power factor correction technology, make the input power factor above 0.99, in order to avoid pollution of grid environment, achieve the goal of energy saving and reduce the system cost.
4)Wide input voltage and frequency range
Extremely wide range of input voltage and frequency, even in places where electricity environment is very bad also can work stable in the mains power supply mode, reduce the number of battery discharge, prolong the service life of the battery.
5)Zero switching
When the grid abnormal, the battery automatically discharge, UPS power supply mode conversion time is zero, effective guarantee load running safety and reliability.
6)Battery management system BMS
According to battery capacity to set the optimal charging current, using advanced are floating automatic conversion technology, increase the efficiency of the battery and prolong the service life of the battery.
7)High-current charger
Built-in high-current charger, can be applied to occasions with frequent power failures and long time power disconnection.
8)Can be used to match the generator
Extremely wide range of input voltage and frequency, can be effectively isolated diesel generators of bad electricity, provide pure and safe and stable power for load.
Technical parameter
Model |
OT1KS |
OT2KS |
OT3KS |
OT6KS |
OT10KS |
type |
High frequency online UPS | ||||
Capacity |
800W |
1600W |
2400W |
4800W |
8000W |
AC input |
Voltage 90-285Vac | ||||
Frequency 40-60Hz | |||||
Power factor 0.99 | |||||
AC output |
Voltage 220Vac( 1± 2% ) | ||||
Frequency 与市电同步(市电模式); 50Hz ± 0.2% (电池模式) | |||||
Power factor 0.8 | |||||
Overload protection 125%,50s | |||||
|
36VDC |
72VDC |
96VDC |
192VDC | |
Independent charging |
Built-in High-current charger |
