KP series

Detailed product:

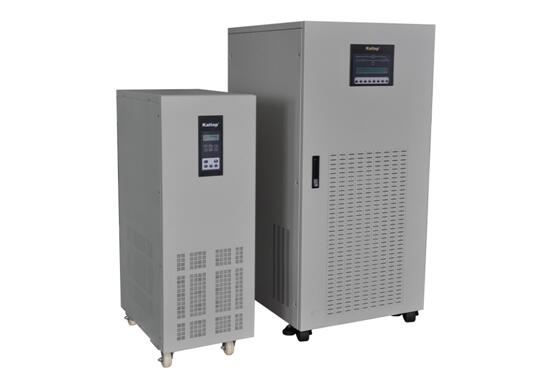

KP Series



Products Characteristic:

1Low frequency online ups, the three-phase input and single-phase output series

2Multiple CPU intelligent control

Advanced multiple CPU intelligent control is one digital software processed by microprocessor, can precisely and integrally control UPS data, and provide with enough calculation capacity, so that UPS can be under the best operation at any time.

3Advance IGBT inverted technology

Combined advanced IGBT technology with  high frequency Pulse Width Modulation technique (PWM),the technology can reduce systematic noise and power loss so that customer can obtain high-quality power output and optimized efficiency under each operation load.

4Built-in isolation transformer

Built-in isolation transformer, To avoid disturbance input of external devices, the UPS has short circuit protection, and more strong overload capacity, also greatly improve the security and stability of the load.

5Intelligent monitoring function

Through the RS232 interface or network adapter ( SNMP card ) to implement remote monitoring, display UPS working parameters on screen.













Technical parameter

MODEL

KP6K

KP10K

KP15K

KP20K

KP30K

KP40K

CAPACITY

6KVA

10KVA

15KVA

20KVA

30KVA

40KVA

INPUT

Voltage

three phase with four lines and ground, 380V±25%

Frequency

                 50Hz/60Hz±10%Automatically

Power factor

                         0.95

OUTPUT



Voltage

220V±1%

Voltage stability

              Stable load ±1% Fluctuant load±5%

Frequency

                          50Hz/60Hz±0.05%

Power factor

0.8-1

Harmonics distortion

linear load3%     Non-linear load5%

Wave form

Pure sine wave

Overload protection

125% 10min   150 1min

Crest factor

31

BATTERY



Battery voltage

192VDC OR 240VDC

Charging time

Charge to 90% in 8 hours

PROTECTION

Overload, over charge and over discharge, over current, over temperature, Low battery voltage, system failure

SYSTEM

Efficiency

                              95%

Transfer time

0 ms

MTBF

300000 hours

Communication

RS23SNMPOptional

Safety rate

IP20

Temperature

                            -10~50℃

Relative humidity

0~93%Non-condensing

Altitude

3000m

Noise  (Distance 1m)

60dB

63dB

DimensionW×D×H

635×410×1155

550×760×1190

Weightkg

78

145

160

190

280

340
