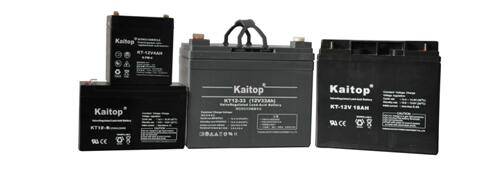

Lead-Acid Battery
Features:
a. Sealed Maintenance-free.
b. Low self-discharge
c. Tightly-Assembled design.
d. High quality separator.
Model |
Voltage |
Capacity |
Dimension (mm) |
Weight | |||
Model |
V |
AH |
L |
W |
H |
TH |
KG |
KT-12V4AH |
12 |
4 |
90 |
70 |
101 |
107 |
1.38 |
KT-12V7AH |
12 |
7 |
151 |
65 |
94 |
100 |
2.15 |
KT-12V10AH |
12 |
10 |
152 |
99 |
96 |
102 |
3.2 |
KT-12V12AH |
12 |
12 |
152 |
99 |
96 |
102 |
3.4 |
KT-12V18AH |
12 |
18 |
181 |
77 |
167 |
167 |
5.3 |
KT-12V20AH |
12 |
20 |
181 |
77 |
167 |
167 |
6.0 |
KT-12V24AH |
12 |
24 |
165 |
126 |
174 |
179 |
7.7 |
KT-12V26AH |
12 |
26 |
166 |
175 |
126 |
126 |
8.4 |
KT-12V33AH |
12 |
33 |
196 |
130 |
155 |
167 |
10.0 |
KT-12V38AH |
12 |
38 |
197 |
166 |
174 |
179 |
12.3 |
KT-12V45AH |
12 |
45 |
198 |
166 |
174 |
174 |
12.9 |
KT-12V50AH |
12 |
50 |
229 |
138 |
208 |
212 |
16.0 |
KT-12V65AH |
12 |
65 |
350 |
167 |
178 |
178 |
20.2 |
KT-12V70AH |
12 |
70 |
260 |
169 |
211 |
215 |
21.7 |
KT-12V80AH |
12 |
80 |
260 |
169 |
211 |
215 |
23.3 |
KT-12V90AH |
12 |
90 |
307 |
169 |
211 |
215 |
26.7 |
KT-12V100AH |
12 |
100 |
331 |
174 |
214 |
219 |
28.0 |
KT-12V120AH |
12 |
120 |
331 |
174 |
214 |
240 |
29.5 |
KT-12V150AH |
12 |
150 |
484 |
171 |
241 |
241 |
42.5 |
KT-12V200AH |
12 |
200 |
522 |
240 |
219 |
244 |
58.0 |
KT-12V250AH |
12 |
250 |
520 |
268 |
220 |
225 |
71.0 |
Note:
The rate capacity (20 rate hour) is the average tested by several times at
The total height of battery includes the terminal.
